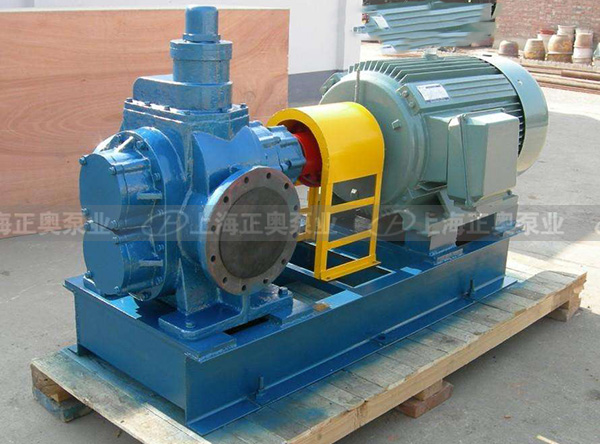

不銹鋼雙螺桿泵的介紹
發布時間：2019/1/3 | 閱讀次數：4021次
一、正奧不銹鋼雙螺桿泵概述
正奧雙螺桿泵的種類較多，它們是由不同的螺桿螺旋形面（即螺旋齒形曲線也稱型線）構成不同類型的雙螺桿泵。雙螺桿泵有密封型和非密封型兩大類。 雙螺桿泵作為一種容積式泵，泵內吸入室應與排出室嚴密地隔開。因此，泵體與螺桿外圓表面及螺桿與螺桿間隙應盡可能小些。同時螺桿與泵體、螺桿與螺桿間又相互形成密封腔，保證密閉，否則就可能有液體從間隙中倒流回去。
雙螺桿泵可分為內置軸承和外置軸承兩種形式。在內置軸承的結構型式中軸承由輸送物進行潤滑。外置軸承結構的雙螺桿泵工作腔同軸承是分開的。由于這種泵的結構和螺桿間存在的側間隙，它可以輸送非潤滑性介質。此外，調整同步齒輪使得螺桿不接觸，同時將輸出扭矩的一半傳給從動螺桿。正如所有螺桿泵一樣，外置軸承式雙螺桿泵也有自吸能力，而且多數泵輸送元件本身都是雙吸對稱布置，可消除軸向力，也有很大的吸高。
泵的這些特性使它在油田化工和船舶工業中得到了廣泛的應用。外置軸承式雙螺桿泵可根據各種使用情況分別采用普通鑄鐵、不銹鋼等 不同材料制造。輸送溫度可達 250 o C 。泵具有不同方式的加熱結構，理論流量可達 2000 立方米 / 小時。
二、不銹鋼雙螺桿泵的特點：
無攪拌、無脈動、平穩的輸送各種介質，由于泵體結構保證泵的工作元件內始終存有泵送液體作為密封液體，所有的泵有很強的自吸能力，且能汽液混輸。
泵的特殊設計保證了泵有高的吸入性能即很小的 NPSHr 值。采用獨立潤滑的外置軸承，允許輸送各種非潤滑性介質。 臥式、立式、帶加熱套等各種結構型式齊全，可以輸送各種清潔的不含固體顆粒的低粘度或高粘度介質，選用正確的材質，甚至可以輸送許多腐蝕性介質。
三、. 不銹鋼雙螺桿泵的用途
由雙螺桿泵的原理知道，對于外置軸承的雙螺桿泵，通過軸承定位，兩根螺桿在襯套中互不接觸，齒側之間保持恒定的間隙（其間隙值由工況及泵本身規格決定），螺桿外圓與襯套內圓面也保持恒定的間隙不變。兩根螺桿的傳動由同步齒輪完成。齒輪箱中有獨立的潤滑，與泵工作腔隔開。這種結構的優點大大拓寬了雙螺桿泵的使用范圍，即：除了輸送潤滑性良好的介質外，還可輸送大量的非潤滑性介質，各種粘度（最高粘度可達 3*106mm/s ）的介質以及具有腐蝕性（酸、堿等性質），磨蝕性的液體。
雙螺桿泵由于其恒定間隙的存在以及型線上的特點，其屬于非密封型容積泵，因此除了輸送純液體外，還可輸送氣體和液體的混合物，即汽液混輸，這也是雙螺桿泵非常獨特的優點之一。 雙螺桿泵由于結構的獨特設計，可以自吸而無須專門的自吸裝置，而且由于軸向輸送軸流速度較小而具備很強的吸上能力即很小的 NPSHr 值。
雙螺桿泵還可干轉。由于運動部件在工作時互不接觸，因此短時的干轉不會破壞泵元件，這種特點給自動的流程提供了極大的方便，但干運轉時間受多種因素限制，一般很短。
另外雙螺桿泵在輸送過程中無剪切，無乳化作用，因此不會破壞分子鏈結構和工況流程中所形成的特定的流體性質，并且由于傳動依靠同步齒輪，泵運轉噪音低，振動小，工作平穩。
四、雙螺桿泵應用范圍
造船：用作船用裝載泵、掃倉泵、船用壓載泵、主機滑油泵、燃油輸送泵、燃油噴射泵、貨油泵等。
熱電廠：重油及原油輸送泵、重油燃油泵等。
化工：用作各種酸堿鹽液以及樹脂、顏料、油墨、油漆、甘油、石蠟的輸送泵。
煉油廠：用以輸送各種加熱油、瀝青油、焦油、乳膠液、瀝青及用作油輪油、池油、罐車等各種油品的裝載及卸載。
食品：用于酒廠、食品廠、糖廠、罐頭廠、等輸送酒精、蜂蜜、糖汁、牙膏、牛奶、奶油、醬油植物油、動物油、葡萄酒等。
油田：輸送各種油品、原油等。

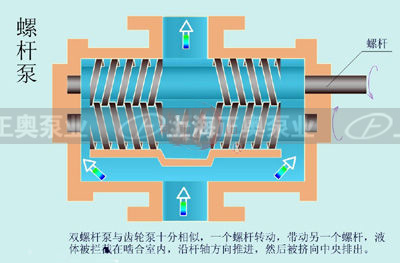

五、不銹鋼雙螺桿泵工作示意圖
六、不銹鋼雙螺桿泵主要零部件材料選用表
|
材料類別 零件名稱
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
|
泵體
|
20
|
0Crl3
|
0Crl8Ni9
|
|
主、從動軸
|
45
|
3Crl3
|
lCrl8Ni9
|
|
螺套
|
38CrMoAl
|
3Crl3
|
lCrl8Ni9
|
|
襯套
|
QT600-3
|
ZGlCrl3
|
ZG0Crl8Ni9
|
七、不銹鋼雙螺桿泵型號意義
|
BY2GW.W |
H | 6.1 | 64 | B | Ⅱ |
| 系列代碼 | 多相混輸型 | 規格代碼 | 螺旋導程 | 密封代碼 | 材料代碼 |
|
1、系列代碼說明 BY2GW.W：BY2GW-博禹牌臥式雙螺桿泵，W-外置軸承式 BY2GW.N：臥式，內置軸承式 |
八、不銹鋼雙螺桿泵性能參數表
|
型號 規格 |
壓力 MPa |
1450r/nin
|
950r/min
|
720r/min
|
|||||||||||||
|
30cSt |
75cSt |
150cSt |
300cSt |
450cSt |
750cSt |
1500cSt |
2500cSt |
||||||||||
|
m3/h
|
kw |
m3/h |
kw |
m3/h |
kw |
m3/h |
kw
|
m3/h |
kw |
m3/h |
kw |
m3/h |
kw |
m3/h |
kw |
||
|
BY2GW.W2.5-15
|
0.6
|
2.4
|
1.5
|
3
|
2.2
|
3.2
|
2.2
|
3.3
|
2.2
|
1.8
|
1.5
|
1.8
|
2.2
|
1.3
|
2.2
|
1.3
|
2.2
|
|
1.0
|
1.7
|
2.2
|
2.6
|
2.2
|
2.9
|
3
|
3.1
|
3
|
1.7
|
2.2
|
1.7
|
2.2
|
1.2
|
2.2
|
1.2
|
2.2
|
|
|
BY2GW.W2.5-20
|
0.4
|
3.9
|
1.5
|
4.3
|
1.5
|
4.4
|
2.2
|
4.5
|
2.2
|
2.6
|
1.5
|
2.6
|
2.2
|
1.9
|
2.2
|
1.9
|
2.2
|
|
0.6
|
3.4
|
1.5
|
4
|
2.2
|
4.2
|
2.2
|
4.3
|
2.2
|
2.5
|
2.2
|
2.5
|
2.2
|
1.8
|
1.5
|
1.8
|
2.2
|
|
|
BY2GW.W2.8-18
|
0.6
|
4.3
|
2.2
|
4.8
|
2.2
|
4.9
|
3
|
5
|
3
|
2.9
|
2.2
|
2.9
|
3
|
2.1
|
3
|
2.1
|
3
|
|
1.0
|
3.7
|
3
|
4.4
|
4
|
4.7
|
4
|
4.8
|
4
|
2.7
|
3
|
2.7
|
3
|
2
|
3
|
2
|
4
|
|
|
BBY2GW.W2.8-24
|
0.4
|
6.3
|
2.2
|
6.6
|
2.2
|
6.7
|
3
|
6.8
|
3
|
4
|
2.2
|
4
|
3
|
2.9
|
2.2
|
2.9
|
3
|
|
0.6
|
5.9
|
2.2
|
6.4
|
4
|
6.5
|
4
|
6.6
|
4
|
3.8
|
3
|
3.8
|
3
|
2.7
|
3
|
2.7
|
3
|
|
|
BY2GW.W 3.1-22 |
0.6
|
7.7
|
3
|
8.2
|
4
|
8.3
|
4
|
8.4
|
4
|
5
|
3
|
5
|
4
|
3.7
|
3
|
3.7
|
4
|
|
1.0
|
7
|
4
|
7.8
|
5.5
|
8
|
5.5
|
8.1
|
5.5
|
4.8
|
4
|
4.8
|
5.5
|
3.5
|
4
|
3.5
|
5.5
|
|
|
BY2GW.W3.1-30 |
0.4
|
11.1
|
3
|
11.4
|
3
|
11.5
|
4
|
11.6
|
5.5
|
6.9
|
3
|
6.9
|
4
|
5.1
|
3
|
5.1
|
4
|
|
0.6
|
10.6
|
4
|
11.1
|
5.5
|
11.3
|
5.5
|
11.4
|
5.5
|
6.7
|
4
|
6.7
|
5.5
|
4.9
|
4
|
4.9
|
5.5
|
|
|
BY2GW.W3.2-18 |
1.6
|
-
|
-
|
4.8
|
7.5
|
5.8
|
7.5
|
6.3
|
7.5
|
2.4
|
5.5
|
2.4
|
5.5
|
0.9
|
4.0
|
0.9
|
5.5
|
|
2.0
|
-
|
-
|
4.2
|
7.5
|
5.5
|
7.5
|
6.1
|
11
|
2.3
|
7.5
|
2.3
|
7.5
|
0.9
|
4.0
|
0.9
|
5.5
|
|
|
2.5
|
-
|
-
|
3.4
|
11
|
5.0
|
11
|
5.8
|
11
|
2.1
|
7.5
|
2.1
|
7.5
|
0.8
|
5.5
|
0.8
|
5.5
|
|
|
BY2GW.W3.2-24 |
1.0
|
5.5
|
5.5
|
7.6
|
7.5
|
8.4
|
11
|
8.7
|
11
|
4.6
|
5.5
|
4.6
|
5.5
|
2.7
|
5.5
|
2.7
|
5.5
|
|
1.25
|
4.6
|
7.5
|
7.2
|
11
|
8.2
|
11
|
8.5
|
11
|
4.5
|
5.5
|
4.5
|
7.5
|
2.6
|
5.5
|
2.6
|
7.5
|
|
|
1.6
|
3.4
|
7.5
|
6.7
|
11
|
7.8
|
11
|
8.3
|
11
|
4.3
|
7.5
|
4.3
|
7.5
|
2.5
|
5.5
|
2.5
|
7.5
|
|
|
BY2GW.W3.2-30 |
0.6
|
9.7
|
5.5
|
11
|
5.5
|
11.5
|
5.5
|
11.7
|
7.5
|
6.8
|
5.5
|
6.8
|
5.5
|
4.3
|
5.5
|
4.3
|
5.5
|
|
1.0
|
8.0
|
7.5
|
10.2
|
7.5
|
10.9
|
7.5
|
11.2
|
7.5
|
6.5
|
5.5
|
6.5
|
5.5
|
4.3
|
5.5
|
4.3
|
5.5
|
|
|
BY2GW.W3.2-44 |
0.4
|
16.4
|
5.5
|
17.5
|
7.5
|
17.9
|
7.5
|
18.1
|
7.5
|
11.2
|
4.0
|
11.3
|
5.5
|
8.0
|
4.0
|
8.0
|
4.0
|
|
0.6
|
15.2
|
7.5
|
17
|
7.5
|
17.4
|
7.5
|
17.6
|
7.5
|
10.9
|
5.5
|
11
|
5.5
|
7.8
|
5.5
|
7.8
|
5.5
|
|
|
BY2GW.W3.4-24 |
1.6
|
-
|
-
|
7.4
|
11
|
9
|
11
|
9.8
|
11
|
5.7
|
7.5
|
5.7
|
7.5
|
4.3
|
7.5
|
4.3
|
11
|
|
2.0
|
-
|
-
|
6.5
|
11
|
8.5
|
11
|
9.5
|
15
|
5.5
|
11
|
5.5
|
11
|
4.1
|
7.5
|
4.1
|
11
|
|
|
2.5
|
-
|
-
|
5.3
|
15
|
7.8
|
15
|
9.1
|
15
|
5.1
|
11
|
5.1
|
11
|
3.9
|
11
|
3.9
|
11
|
|
|
BY2GW.W3.4-30 |
1.0
|
8.3
|
7.5
|
11.4
|
7.5
|
12.4
|
11
|
12.9
|
11
|
7.6
|
7.5
|
7.6
|
7.5
|
5.6
|
7.5
|
5.6
|
7.5
|
|
1.25
|
6.9
|
11
|
10.7
|
11
|
12.1
|
11
|
12.6
|
11
|
7.4
|
7.5
|
7.4
|
11
|
5.5
|
7.5
|
5.5
|
11
|
|
|
1.6
|
5
|
11
|
9.9
|
11
|
11.5
|
11
|
12.3
|
15
|
7.1
|
11
|
7.1
|
11
|
5.3
|
7.5
|
5.3
|
11
|
|
|
BY2GW.W3.4-40 |
0.6
|
14.8
|
5.5
|
16.8
|
7.5
|
17.5
|
7.5
|
17.8
|
11
|
10.6
|
7.5
|
10.6
|
7.5
|
7.8
|
7.5
|
7.8
|
7.5
|
|
1.0
|
12.2
|
11
|
15.5
|
11
|
16.6
|
11
|
17.2
|
11
|
10
|
7.5
|
10
|
7.5
|
7.4
|
7.5
|
7.4
|
7.5
|
|
|
BY2GW.W3.4-56 |
0.4
|
21.8
|
5.5
|
23.2
|
7.5
|
23.7
|
7.5
|
24
|
11
|
14.3
|
5.5
|
14.4
|
7.5
|
10.5
|
5.5
|
10.5
|
7.5
|
|
0.6
|
20.2
|
7.5
|
22.5
|
11
|
23.1
|
11
|
23.4
|
11
|
13.8
|
7.5
|
13.9
|
7.5
|
10.1
|
7.5
|
10.1
|
7.5
|
|
|
BY2GW.W4.0-26 |
1.6
|
|
|
12.4
|
15
|
14.6
|
15
|
15.7
|
18.5
|
9.3
|
11
|
9.3
|
15
|
7
|
11
|
7
|
15
|
|
2.0
|
|
|
11.2
|
15
|
13.9
|
18.5
|
15.3
|
22
|
9
|
15
|
9
|
15
|
6.8
|
15
|
6.8
|
15
|
|
|
2.5
|
|
|
9.6
|
18.5
|
13.1
|
22
|
14.8
|
22
|
8.6
|
15
|
8.6
|
15
|
6.6
|
15
|
6.6
|
15
|
|
|
BY2GW.W4.0-32 |
1.0
|
13.9
|
11
|
18.2
|
15
|
19.6
|
15
|
20.3
|
15
|
12.2
|
11
|
12.2
|
15
|
9.1
|
11
|
9.1
|
11
|
|
1.25
|
12
|
15
|
17.3
|
15
|
19.1
|
15
|
20
|
18.5
|
11.9
|
11
|
11.9
|
15
|
8.9
|
11
|
8.9
|
15
|
|
|
1.6
|
|
|
16.1
|
18.5
|
18.4
|
18.5
|
19.5
|
22
|
11.5
|
15
|
11.5
|
15
|
8.6
|
11
|
8.6
|
15
|
|
|
BY2GW.W4.0-44 |
0.6
|
24.6
|
11
|
27.4
|
11
|
28.3
|
11
|
28.8
|
15
|
17.3
|
11
|
17.3
|
11
|
12.8
|
11
|
12.8
|
11
|
|
1.0
|
21.1
|
15
|
25.7
|
15
|
27.2
|
15
|
27.9
|
18.5
|
16.6
|
11
|
16.6
|
15
|
12.3
|
11
|
12.3
|
15
|
|
|
BY2GW.W4.0-64 |
0.4
|
37.2
|
11
|
39.1
|
11
|
39.8
|
11
|
40.1
|
15
|
24.1
|
11
|
24.2
|
11
|
17.8
|
11
|
17.8
|
11
|
|
0.6
|
35
|
11
|
38
|
15
|
38.9
|
15
|
39.4
|
18.5
|
23.5
|
11
|
23.7
|
11
|
17.3
|
11
|
17.3
|
11
|
|
|
BY2GW.W4.5-30 |
1.6
|
17.4
|
18.5
|
22.3
|
22
|
24
|
22
|
24.8
|
30
|
14.9
|
18.5
|
15
|
18.5
|
11.1
|
18.5
|
11.2
|
18.5
|
|
2.0
|
15.1
|
22
|
21.3
|
30
|
23.4
|
30
|
24.4
|
30
|
14.5
|
22
|
14.6
|
22
|
10.9
|
18.5
|
11
|
22
|
|
|
2.5
|
12.3
|
30
|
20
|
30
|
22.6
|
30
|
23.9
|
30
|
14.2
|
22
|
14.3
|
22
|
10.6
|
18.5
|
10.6
|
22
|
|
|
BY2GW.W4.5-40 |
1.0
|
29.1
|
18.5
|
32.4
|
18.5
|
33.5
|
22
|
34
|
22
|
20.5
|
18.5
|
20.6
|
18.5
|
15.3
|
15
|
15.3
|
18.5
|
|
1.25
|
27.5
|
18.5
|
31.6
|
22
|
33
|
30
|
33.7
|
30
|
20.2
|
18.5
|
20.3
|
22
|
15
|
18.5
|
15.1
|
22
|
|
|
1.6
|
25.3
|
30
|
30.6
|
30
|
32.3
|
30
|
33.2
|
30
|
19.9
|
22
|
20
|
22
|
14.7
|
18.5
|
14.8
|
22
|
|
|
BY2GW.W4.5-52 |
0.6
|
41.8
|
15
|
43.9
|
15
|
44.6
|
18.5
|
45
|
22
|
27.3
|
15
|
27.4
|
18.5
|
20.3
|
15
|
20.3
|
15
|
|
1.0
|
38.9
|
22
|
42.4
|
22
|
43.6
|
30
|
44.2
|
30
|
26.6
|
18.5
|
26.7
|
18.5
|
19.7
|
15
|
19.7
|
18.5
|
|
|
BY2GW.W4.5-72 |
0.4
|
57.3
|
15
|
58.8
|
15
|
59.3
|
18.5
|
59.6
|
22
|
36.1
|
15
|
36.2
|
15
|
26.9
|
15
|
26.9
|
18.5
|
|
0.6
|
55.5
|
18.5
|
57.7
|
22
|
58.5
|
22
|
58.9
|
22
|
35.5
|
22
|
35.6
|
18.5
|
26.3
|
18.5
|
26.3
|
22
|
|
|
BY2GW.W5.0-28 |
2.5
|
17.3
|
37
|
24.7
|
37
|
27.2
|
37
|
28.4
|
45
|
17.1
|
30
|
17.3
|
37
|
12.9
|
30
|
12.9
|
37
|
|
3.2
|
|
|
23.1
|
45
|
26.3
|
45
|
27.9
|
55
|
16.7
|
37
|
17
|
45
|
12.7
|
37
|
12.8
|
37
|
|
|
4.0
|
|
|
21.3
|
55
|
25.3
|
55
|
27.3
|
75
|
16.2
|
45
|
16.5
|
45
|
12.4
|
37
|
12.6
|
45
|
|
|
BY2GW.W5.0-40 |
1.6
|
34.6
|
37
|
39.5
|
45
|
41.1
|
45
|
42
|
45
|
25.4
|
30
|
25.6
|
37
|
19.9
|
30
|
20
|
37
|
|
2.0
|
32.3
|
37
|
38.4
|
45
|
40.5
|
45
|
41.5
|
45
|
25.1
|
37
|
25.3
|
37
|
18.8
|
37
|
18.9
|
37
|
|
|
BY2GW.W5.0-40 |
2.5
|
29.4
|
45
|
37.1
|
45
|
39.7
|
55
|
41
|
55
|
24.7
|
37
|
24.9
|
37
|
18.5
|
37
|
18.6
|
37
|
|
BY2GW.W5.0-52 |
1.0
|
50.7
|
30
|
53.9
|
30
|
55
|
37
|
55.5
|
37
|
33.8
|
30
|
34
|
30
|
25.3
|
30
|
25.4
|
30
|
|
1.25
|
49.1
|
30
|
53.1
|
37
|
54.4
|
37
|
55.1
|
45
|
33.5
|
30
|
33.7
|
37
|
25
|
30
|
25.1
|
37
|
|
|
1.6
|
46.9
|
37
|
52
|
45
|
53.7
|
45
|
54.6
|
55
|
33.1
|
37
|
33.3
|
37
|
24.7
|
30
|
24.7
|
37
|
|
|
BY2GW.W5.0-64 |
0.6
|
66.1
|
22
|
68.1
|
22
|
68.8
|
30
|
39.1
|
37
|
42.3
|
22
|
42.4
|
30
|
31.6
|
22
|
31.7
|
30
|
|
1.0
|
63.2
|
30
|
66.6
|
37
|
67.7
|
37
|
68.2
|
45
|
41.5
|
30
|
41.7
|
30
|
30.9
|
30
|
31
|
30
|
|
|
BY2GW.W5.0-96 |
0.4
|
96.7
|
22
|
98.1
|
22
|
98.6
|
30
|
98.8
|
37
|
60.3
|
22
|
60.4
|
30
|
45.1
|
22
|
45.1
|
30
|
|
0.6
|
89.7
|
30
|
96.9
|
37
|
97.7
|
37
|
98
|
45
|
59.6
|
30
|
59.7
|
30
|
44.4
|
30
|
44.5
|
30
|
|
|
BY2GW.W5.0-30 |
2.5
|
26.7
|
45
|
34.1
|
45
|
36.6
|
55
|
37.8
|
75
|
22.7
|
45
|
23
|
45
|
17.1
|
45
|
17.3
|
45
|
|
3.2
|
23
|
55
|
32.5
|
55
|
35.7
|
75
|
37.2
|
75
|
22.2
|
45
|
22.5
|
55
|
16.8
|
45
|
17
|
55
|
|
|
4.0
|
|
|
30.6
|
75
|
34.6
|
75
|
36.6
|
75
|
21.8
|
55
|
22.1
|
55
|
16.6
|
55
|
16.8
|
55
|
|
|
BY2GW.W5.5-44 |
1.6
|
43
|
45
|
51.7
|
45
|
54.6
|
55
|
56
|
55
|
33.8
|
37
|
34.1
|
45
|
25.5
|
37
|
25.6
|
45
|
|
2.0
|
39
|
55
|
49.9
|
55
|
53.6
|
55
|
55.4
|
75
|
33.2
|
45
|
33.6
|
55
|
25
|
45
|
25.2
|
55
|
|
|
2.5
|
34.1
|
55
|
47.8
|
75
|
52.3
|
75
|
54.6
|
75
|
32.7
|
55
|
33.3
|
55
|
24.7
|
45
|
24.8
|
55
|
|
|
BY2GW.W5.5-56 |
1.0
|
64.3
|
37
|
70
|
37
|
71.9
|
45
|
72.9
|
55
|
44.1
|
37
|
44.4
|
45
|
33
|
37
|
33.2
|
45
|
|
1.25
|
61.6
|
45
|
68.8
|
45
|
71.1
|
55
|
72.2
|
75
|
43.7
|
37
|
44
|
45
|
32.7
|
37
|
32.8
|
45
|
|
|
1.6
|
57.9
|
55
|
67
|
55
|
70
|
75
|
71.5
|
75
|
43.1
|
45
|
43.4
|
45
|
32.3
|
37
|
32.4
|
45
|
|
|
BY2GW.W5.5-80 |
0.6
|
99.7
|
30
|
103
|
37
|
104
|
45
|
105
|
45
|
64
|
30
|
64.2
|
37
|
48
|
30
|
48
|
37
|
|
1.0
|
94.6
|
45
|
100
|
55
|
102
|
55
|
103
|
75
|
62.8
|
45
|
63.1
|
45
|
46.9
|
37
|
47
|
45
|
|
|
BY2GW.W 5.5-120 |
0.4
|
146
|
30
|
149
|
37
|
150
|
45
|
150
|
55
|
91.8
|
30
|
92
|
37
|
68.6
|
30
|
68.7
|
37
|
|
0.6
|
143
|
45
|
147
|
55
|
148
|
55
|
149
|
55
|
90.7
|
37
|
90.9
|
45
|
67.6
|
37
|
67.6
|
45
|
|
|
BY2GW.W6.1-36
|
2.5
|
40.9
|
75
|
51.9
|
75
|
55.7
|
75
|
57.4
|
90
|
33
|
55
|
33.4
|
75
|
24.9
|
55
|
25
|
75
|
|
3.2
|
35.4
|
75
|
49.5
|
90
|
54.2
|
90
|
56.6
|
110
|
32.4
|
75
|
32.9
|
75
|
24.5
|
75
|
24.7
|
75
|
|
|
4.0
|
|
|
46.8
|
110
|
52.7
|
110
|
55.6
|
110
|
31.7
|
75
|
32.4
|
90
|
24
|
75
|
24.3
|
75
|
|
|
BY2GW.W6.1-48
|
1.6
|
67.6
|
55
|
74.8
|
75
|
77.3
|
75
|
78.5
|
75
|
47.5
|
55
|
47.8
|
75
|
35.7
|
55
|
35.8
|
75
|
|
2.0
|
64.2
|
75
|
73.3
|
75
|
76.3
|
75
|
77.8
|
90
|
47
|
75
|
47.5
|
75
|
35.2
|
55
|
35.3
|
75
|
|
|
2.5
|
60
|
75
|
71.4
|
90
|
75.2
|
90
|
77.1
|
110
|
46.4
|
75
|
46.9
|
75
|
34.9
|
55
|
34.9
|
75
|
|
|
BY2GW.W6.1-64
|
1.0
|
99
|
45
|
103
|
55
|
105
|
75
|
106
|
75
|
64.5
|
45
|
64.7
|
55
|
48.4
|
45
|
48.5
|
55
|
|
1.25
|
96.6
|
55
|
102
|
75
|
104
|
75
|
105
|
90
|
64.1
|
55
|
64.3
|
75
|
48
|
55
|
48
|
75
|
|
|
1.6
|
93.3
|
75
|
101
|
75
|
103
|
90
|
104
|
90
|
63.2
|
75
|
63.7
|
75
|
47.2
|
55
|
47.5
|
75
|
|
|
BY2GW.W6.1-96
|
0.6
|
155
|
45
|
158
|
55
|
160
|
75
|
160
|
75
|
98
|
45
|
98
|
55
|
73.2
|
45
|
73.3
|
55
|
|
1.0
|
151
|
75
|
156
|
75
|
158
|
75
|
158
|
90
|
96.4
|
55
|
96.7
|
75
|
72
|
55
|
72.1
|
75
|
|
|
BY2GW.W6.1-144
|
0.4
|
225
|
45
|
228
|
55
|
228
|
55
|
229
|
75
|
140
|
45
|
140
|
55
|
104
|
45
|
105
|
55
|
|
0.6
|
222
|
75
|
225
|
75
|
227
|
75
|
227
|
90
|
138
|
55
|
138
|
75
|
103
|
55
|
103
|
75
|
|
|
BY2GW.W6.9-40
|
2.5
|
61.3
|
90
|
74
|
90
|
78.2
|
110
|
80.3
|
110
|
46.3
|
75
|
46.8
|
90
|
35
|
75
|
35.1
|
90
|
|
3.2
|
54.9
|
110
|
71.2
|
110
|
76.6
|
132
|
79.3
|
132
|
45.6
|
90
|
46.2
|
110
|
34.5
|
90
|
34.7
|
110
|
|
|
4.0
|
|
|
68
|
160
|
74.8
|
160
|
78.2
|
185
|
44.8
|
110
|
45.6
|
132
|
33.9
|
110
|
34.2
|
132
|
|
|
BY2GW.W6.9-56
|
1.6
|
102
|
110
|
110
|
110
|
113
|
132
|
114
|
132
|
69.8
|
75
|
70.2
|
90
|
52.5
|
75
|
52.6
|
90
|
|
2.0
|
98
|
132
|
108
|
132
|
112
|
160
|
144
|
160
|
69
|
90
|
69.6
|
110
|
51.9
|
90
|
52
|
110
|
|
|
2.5
|
93
|
132
|
106
|
132
|
110
|
160
|
113
|
160
|
68.4
|
110
|
68.9
|
110
|
51.4
|
90
|
51.5
|
110
|
|
|
BY2GW.W6.9-80
|
1.0
|
157
|
110
|
163
|
110
|
165
|
132
|
166
|
132
|
101
|
75
|
101
|
90
|
75.9
|
75
|
76
|
90
|
|
1.25
|
154
|
132
|
161
|
132
|
164
|
160
|
165
|
160
|
100
|
90
|
100
|
110
|
75.3
|
90
|
75.4
|
110
|
|
|
1.6
|
150
|
160
|
159
|
160
|
162
|
185
|
164
|
185
|
99.7
|
110
|
100
|
110
|
74.6
|
90
|
74.8
|
110
|
|
|
BY2GW.W6.9-112
|
0.6
|
228
|
90
|
232
|
90
|
233
|
110
|
234
|
110
|
143
|
75
|
143
|
90
|
107
|
75
|
107
|
90
|
|
1.0
|
222
|
132
|
228
|
132
|
231
|
160
|
232
|
160
|
142
|
90
|
142
|
110
|
106
|
90
|
106
|
110
|
|
|
BY2GW.W6.9-144
|
0.4
|
283
|
75
|
285
|
75
|
286
|
90
|
287
|
90
|
176
|
55
|
176
|
75
|
132
|
55
|
132
|
75
|
|
0.6
|
279
|
110
|
283
|
110
|
284
|
132
|
285
|
132
|
174
|
75
|
174
|
90
|
130
|
75
|
130
|
90
|
|
|
BY2GW.W7.6-96
|
0.6
|
261
|
110
|
265
|
110
|
267
|
132
|
267
|
132
|
165
|
75
|
165
|
90
|
124
|
75
|
124
|
90
|
|
1.0
|
254
|
160
|
262
|
160
|
264
|
185
|
266
|
185
|
163
|
110
|
163
|
110
|
123
|
90
|
123
|
110
|
|
|
BY2GW.W7.6-112
|
0.6
|
305
|
110
|
309
|
110
|
311
|
132
|
312
|
32
|
192
|
75
|
192
|
90
|
144
|
75
|
144
|
90
|
|
0.8
|
301
|
160
|
308
|
160
|
310
|
185
|
311
|
185
|
191
|
110
|
191
|
132
|
143
|
110
|
143
|
132
|
|
|
BY2GW.W7.6-160
|
0.4
|
420
|
110
|
423
|
110
|
424
|
132
|
424
|
132
|
261
|
75
|
261
|
90
|
197
|
75
|
197
|
90
|
|
0.6
|
415
|
160
|
420
|
160
|
422
|
185
|
423
|
185
|
259
|
90
|
259
|
110
|
195
|
90
|
195
|
110
|
|
|
BY2GW.W7.6-56
|
1.6
|
81.8
|
90
|
92.9
|
110
|
96.7
|
110
|
98.5
|
110
|
70.2
|
75
|
70.3
|
90
|
56.4
|
75
|
56.4
|
90
|
|
2.0
|
76.7
|
110
|
90.6
|
132
|
95.3
|
132
|
97.6
|
132
|
69.4
|
90
|
69.5
|
110
|
55.9
|
90
|
55.9
|
110
|
|
|
2.5
|
70.3
|
110
|
87.8
|
132
|
93.6
|
132
|
96.5
|
132
|
68.6
|
110
|
69.3
|
110
|
55.3
|
90
|
55.3
|
110
|
|
|
BY2GW.W7.6-80
|
1.0
|
132
|
90
|
139
|
90
|
141
|
110
|
143
|
110
|
102
|
75
|
102
|
90
|
81.7
|
75
|
81.7
|
90
|
|
1.25
|
128
|
110
|
137
|
110
|
140
|
132
|
142
|
132
|
101
|
90
|
101
|
110
|
81.2
|
90
|
81.2
|
110
|
|
|
1.6
|
123
|
132
|
135
|
132
|
139
|
160
|
141
|
160
|
100
|
110
|
100
|
110
|
80.4
|
90
|
80.4
|
110
|
|
|
BY2GW.W7.6-96
|
0.6
|
166
|
75
|
171
|
90
|
172
|
90
|
173
|
90
|
124
|
55
|
124
|
75
|
99
|
55
|
99
|
75
|
|
1.0
|
160
|
110
|
168
|
132
|
170
|
132
|
171
|
132
|
122
|
75
|
122
|
90
|
97
|
75
|
97
|
90
|
|
|
BY2GW.W7.6-112
|
0.6
|
195
|
90
|
200
|
90
|
201
|
90
|
202
|
90
|
144
|
75
|
144
|
75
|
115
|
75
|
115
|
75
|
|
0.8
|
191
|
110
|
198
|
110
|
200
|
110
|
201
|
110
|
143
|
75
|
143
|
75
|
114
|
75
|
114
|
75
|
|
|
BY2GW.W7.6-160
|
0.4
|
270
|
75
|
274
|
75
|
275
|
75
|
276
|
75
|
196
|
55
|
196
|
75
|
157
|
55
|
157
|
75
|
|
0.6
|
266
|
110
|
271
|
132
|
273
|
132
|
268
|
132
|
194
|
75
|
194
|
90
|
155
|
75
|
155
|
90
|
|
|
BY2GW.W8.3-64
|
1.6
|
112
|
132
|
126
|
132
|
131
|
132
|
133
|
132
|
95.2
|
110
|
95.4
|
110
|
76.5
|
90
|
76.5
|
90
|
|
2.0
|
106
|
132
|
123
|
160
|
129
|
160
|
132
|
160
|
94.3
|
110
|
95
|
132
|
75.8
|
110
|
75.8
|
110
|
|
|
2.5
|
98.4
|
160
|
120
|
185
|
127
|
185
|
131
|
185
|
93.2
|
132
|
94.1
|
185
|
75
|
132
|
75
|
185
|
|
|
BY2GW.W8.3-96
|
1.0
|
189
|
132
|
198
|
132
|
202
|
132
|
203
|
132
|
145
|
110
|
145
|
110
|
134
|
110
|
134
|
110
|
|
1.25
|
185
|
132
|
196
|
160
|
200
|
160
|
202
|
160
|
144
|
110
|
144
|
110
|
115
|
110
|
115
|
110
|
|
|
1.6
|
178
|
160
|
193
|
185
|
198
|
185
|
200
|
185
|
143
|
132
|
143
|
132
|
114
|
132
|
114
|
132
|
|
|
BY2GW.W8.3-120
|
0.6
|
248
|
110
|
253
|
110
|
255
|
110
|
256
|
110
|
183
|
75
|
183
|
75
|
146
|
75
|
146
|
75
|
|
1.0
|
239
|
160
|
249
|
160
|
252
|
160
|
254
|
160
|
181
|
110
|
181
|
110
|
144
|
110
|
144
|
110
|
|
|
BY2GW.W8.3-144
|
0.6
|
298
|
110
|
304
|
132
|
306
|
132
|
307
|
132
|
202
|
90
|
202
|
90
|
175
|
90
|
175
|
90
|
|
0.8
|
293
|
160
|
302
|
160
|
304
|
160
|
306
|
160
|
218
|
110
|
218
|
110
|
174
|
110
|
174
|
110
|
|
|
BY2GW.W8.3-192
|
0.4
|
385
|
110
|
389
|
110
|
390
|
110
|
391
|
110
|
279
|
75
|
279
|
75
|
222
|
75
|
222
|
75
|
|
0.6
|
378
|
132
|
385
|
132
|
387
|
132
|
388
|
132
|
276
|
110
|
276
|
110
|
220
|
110
|
220
|
110
|
|
